Pad Printing: The Go-To Method for Branding Pens, USBs, Keychains, and Other Hard Goods

If you've ever wondered how a crisp, clean logo ends up on the side of a pen, the casing of a USB drive, or the surface of a metal keychain, the answer is almost certainly pad printing. It's one of the most widely used decoration methods in the corporate gifts industry — and for good reason. This guide explains everything you need to know about pad printing on hard goods, so you can make an informed decision when ordering your next batch of branded merchandise.

At a Glance

• Best for: Small to medium-sized logos on hard goods such as pens, USB drives, keychains, bottle openers, and tech accessories
• Not ideal for: Full-colour photographic images, large print areas, or all-over prints
• Colour capability: Spot colours, Pantone matching, single and multi-colour prints (typically up to four colours)
• Typical products: Pens, USB flash drives, keychains, golf balls, bottle openers, power banks, earphone cases, lighters, small tools
• Best artwork format: Vector files — Adobe Illustrator (.AI), EPS, or vector PDF

What Is Pad Printing?

Pad printing (sometimes called tampography) is an indirect printing process that transfers ink from a flat plate (known as a cliché) onto a three-dimensional object using a soft silicone pad. The flexibility of the pad allows it to conform to curved, recessed, angled, and irregular surfaces — making it perfectly suited to the kind of small, awkwardly shaped products that are so common in the promotional merchandise world.

It's one of the most popular methods for branding hard goods like pens, USB drives, and keychains because it delivers sharp, detailed prints on surfaces that other methods simply can't reach.

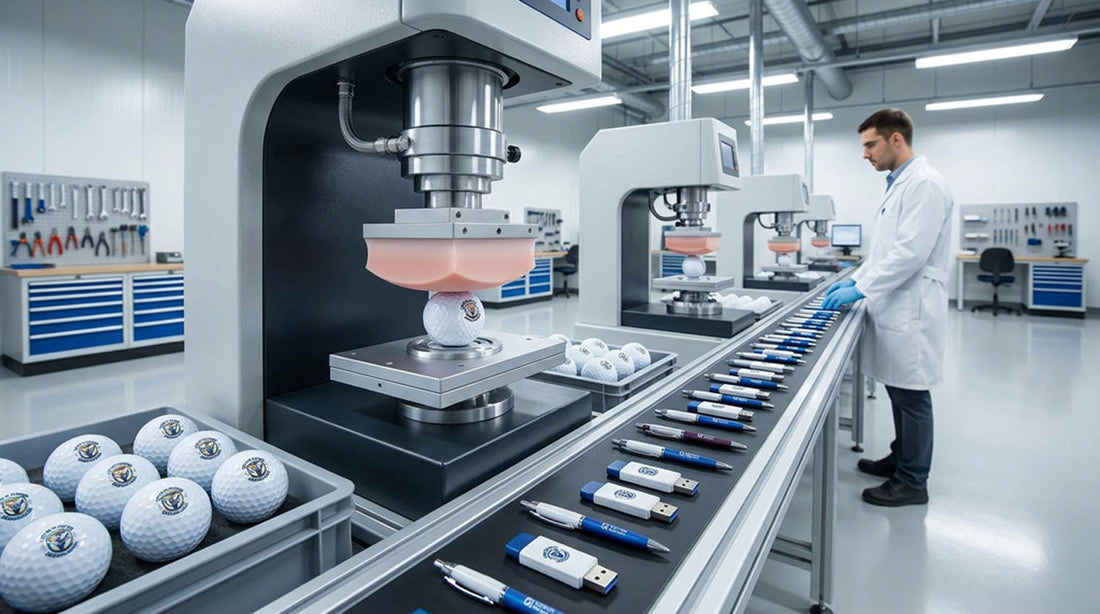

How Pad Printing Works

The process might sound complex, but it's actually quite elegant. Here's how it works, step by step:

1. Artwork preparation: Your logo or design is used to create an etched printing plate, called a cliché. This is typically a steel or polymer plate with your artwork chemically etched into the surface.
2. Inking the plate: The etched area of the cliché is flooded with ink. A blade (called a doctor blade) then sweeps across the surface, removing excess ink and leaving ink only in the etched design.
3. Picking up the image: A soft silicone pad presses down onto the cliché, picking up the ink from the etched design. The pad's shape and flexibility allow it to lift the ink cleanly.
4. Transferring to the product: The pad then presses onto the product — be it a pen barrel, USB casing, or keychain — depositing the ink onto the surface. Because the pad is soft and flexible, it moulds around curves, contours, and recesses.
5. Drying and curing: The ink dries or cures on the product surface. For multi-colour prints, the process is repeated for each colour, with careful alignment (registration) between passes.

The entire cycle takes just seconds per print, making pad printing efficient even for large production runs.

Advantages of Pad Printing

Pad printing has remained a staple of the promotional products industry for decades, and here's why:

• Excellent for small, detailed prints: Pad printing can reproduce fine lines, small text, and intricate logos with impressive clarity — ideal for the compact branding areas found on pens, USBs, and keychains.
• Works on curved and irregular surfaces: Unlike screen printing or direct digital methods, the flexible silicone pad conforms to rounded pen barrels, textured keychain surfaces, and recessed areas on USB casings.
• Accurate Pantone colour matching: Inks are mixed to match specific Pantone references, giving you precise brand colour consistency across your order.
• Cost-effective for medium to large runs: Once the cliché is made, the per-unit cost drops significantly with higher quantities, making it very economical for typical corporate gift orders.
• Consistent and repeatable: The mechanical nature of the process ensures that the first print and the ten-thousandth print look virtually identical.
• Durable results: When applied correctly with the right ink for the substrate, pad prints are resistant to general handling, rubbing, and everyday wear — important for items like pens and keychains that are used daily.
• Versatile across materials: Pad printing works on plastic, metal, wood, rubber, glass, and coated surfaces — covering the vast majority of hard goods used in promotional merchandise.
• Fast production speeds: The rapid print cycle means large orders can typically be fulfilled within standard lead times.

Disadvantages and Limitations

No printing method is perfect for every situation, and it's important to understand where pad printing has its limits:

• Limited print area: Pad printing is best suited to relatively small print areas. If your design needs to cover a large surface, other methods like screen printing or digital printing may be more appropriate.
• Not ideal for full-colour or photographic images: While multi-colour pad printing is possible, it works best with spot colours rather than full CMYK process printing. Photographs and complex gradients don't reproduce well.
• Setup costs per colour: Each colour requires its own cliché and print pass. This means multi-colour designs add to both setup costs and production time.
• Colour limitations per print: Most pad printing setups handle up to four spot colours comfortably. Designs with more colours than this may become impractical or cost-prohibitive.
• Ink opacity on dark surfaces: Printing light-coloured or white ink onto dark substrates can sometimes require multiple passes to achieve solid opacity, and results may vary depending on the product material.
• Gradients and shading: While halftones are technically possible, they don't always reproduce as cleanly as with digital printing methods. Fine gradients can appear grainy or uneven.
• Results depend on the substrate: The quality and durability of the print can vary depending on the product's material, surface texture, and any coatings applied. Some surfaces hold ink better than others.

What Can Be Printed Using Pad Printing?

What It Does Well

• Single-colour logos: This is pad printing's sweet spot. A one-colour logo on a pen or keychain will look sharp, clean, and professional.
• Spot colours (up to four): Multi-colour logos with distinct, separate colour areas print beautifully.
• Pantone matching: Inks are custom-mixed to your specified Pantone colour, ensuring brand accuracy.
• Block colours: Solid, flat areas of colour reproduce cleanly and consistently.
• Fine detail and small text: Pad printing handles intricate details well, though there are practical minimums (typically around 4pt for text and 0.3mm for line thickness, depending on the product).

What It Does Less Well

• Gradients and shading: These can be attempted using halftone screens, but results may appear dotty or inconsistent compared to digital methods.
• Full-colour / CMYK artwork: Process colour printing is not pad printing's strength. For photographic or full-colour artwork, digital printing or UV printing are better options.
• Photographic images: These require CMYK reproduction and are generally not suitable for pad printing.
• White ink on dark products: Achievable but may require multiple passes and results can vary with the substrate.
• Metallic effects: Metallic inks are available but tend to be more limited in finish and vibrancy compared to foil stamping or other specialist decoration methods.

Typical Products

In the corporate gifts industry, pad printing is most commonly used on:

• Plastic and metal pens
• USB flash drives
• Metal and plastic keychains
• Bottle openers
• Power banks and tech accessories
• Earphone cases
• Golf balls
• Lighters
• Small tools and measuring tapes
• Compact mirrors and pill boxes

Artwork Requirements

Providing the right artwork from the start saves time, avoids delays, and ensures the best possible print result. Here's what you need to know:

Preferred File Formats

• Adobe Illustrator (.AI) — the gold standard
• EPS — widely compatible vector format
• Vector PDF — ensure it contains editable vector paths, not embedded images
• SVG — acceptable for most workflows

Vector artwork is strongly preferred because it can be scaled to any size without losing quality, and it allows clean separation of colours for the cliché creation process.

When Raster Files Are Acceptable

If vector files are unavailable, high-resolution raster files can sometimes be used:

• PNG, TIFF, or JPEG at 300 dpi minimum at the final print size
• PNG with a transparent background is preferred over JPEG for logos

However, raster files may need to be redrawn as vectors before printing, which can affect lead times.

Practical Artwork Guidance

• Convert all fonts to outlines/curves to avoid font substitution issues
• Specify Pantone colour references (e.g., Pantone 186 C) if brand colour accuracy matters
• Minimum line thickness: Typically 0.3mm, though this can vary by product
• Minimum text size: Around 4pt for clean legibility, though larger is always safer on textured surfaces
• Print area: This varies by product — always check the product specification or ask your supplier for the exact branding area dimensions
• Keep designs within the printable area and allow a small safety margin from edges

Other Important Information

Durability and Wear

Pad-printed logos on hard goods are generally durable under normal use. A branded pen that lives in a desk drawer or pocket will typically retain its print well over time. However, items subject to heavy abrasion, constant friction, or chemical exposure may see some wear. The durability depends significantly on the ink type used and the surface material of the product — metal and coated plastics tend to hold prints better than uncoated or textured surfaces.

Colour Consistency

Because pad printing uses pre-mixed Pantone inks, colour consistency across a production run is typically excellent. However, the final appearance of a colour can be influenced by the base colour of the product itself. A red logo on a white pen will look different from the same red on a grey or dark blue pen.

Setup Charges

Pad printing involves a one-time setup charge for creating the cliché (printing plate). A separate cliché is needed for each colour in your design. These costs are usually modest and are spread across the order, making them negligible on larger quantities.

Order Quantities

Pad printing is economical across a wide range of order sizes, from a few hundred to tens of thousands of units. For very small orders (under 50 pieces), the setup charges may make the per-unit cost less attractive — though this depends on the product and supplier.

Lead Times

Standard pad printing production is relatively quick. Lead times are more often determined by product availability and shipping than by the printing process itself.

Common Misconceptions

• "Pad printing can print anything" — It's excellent for spot-colour logos but not the right method for photographic images or complex gradients.
• "One colour means one pass is always enough" — On very dark products, light-coloured inks may require a second pass for full opacity.
• "The print will last forever" — Durability is very good under normal conditions, but no print method is truly permanent under all circumstances.

Best Use Cases

Choose Pad Printing When:

• You need to brand small hard goods like pens, USBs, or keychains
• Your logo is one to four spot colours
• The product surface is curved, recessed, or irregularly shaped
• You need precise Pantone colour matching
• You're ordering medium to large quantities and need consistency
• Your design includes fine detail or small text

Consider Another Method When:

• Your design is a full-colour photograph or includes complex gradients — consider UV digital printing
• You need a large print area or all-over coverage — consider screen printing or heat transfer
• You want a premium metallic or embossed finish — consider foil stamping or laser engraving
• You're branding soft goods like fabric bags or apparel — consider screen printing or embroidery
• You want a permanent, ink-free mark on metal items — consider laser engraving

Conclusion

Pad printing remains one of the most reliable, cost-effective, and versatile methods for branding hard goods in the corporate gifts industry. If you're ordering branded pens, USB drives, keychains, or similar promotional items with a spot-colour logo, pad printing will almost certainly deliver a sharp, professional result at a competitive price.

It's not the right choice for photographic prints or complex full-colour artwork — but for the vast majority of corporate branding needs on small hard goods, it's hard to beat.

If you're unsure whether pad printing is the best option for your project, or if you'd like advice on artwork preparation and product selection, our team is here to help. Get in touch with us at sales@brandhk.com and we'll guide you through the options.
